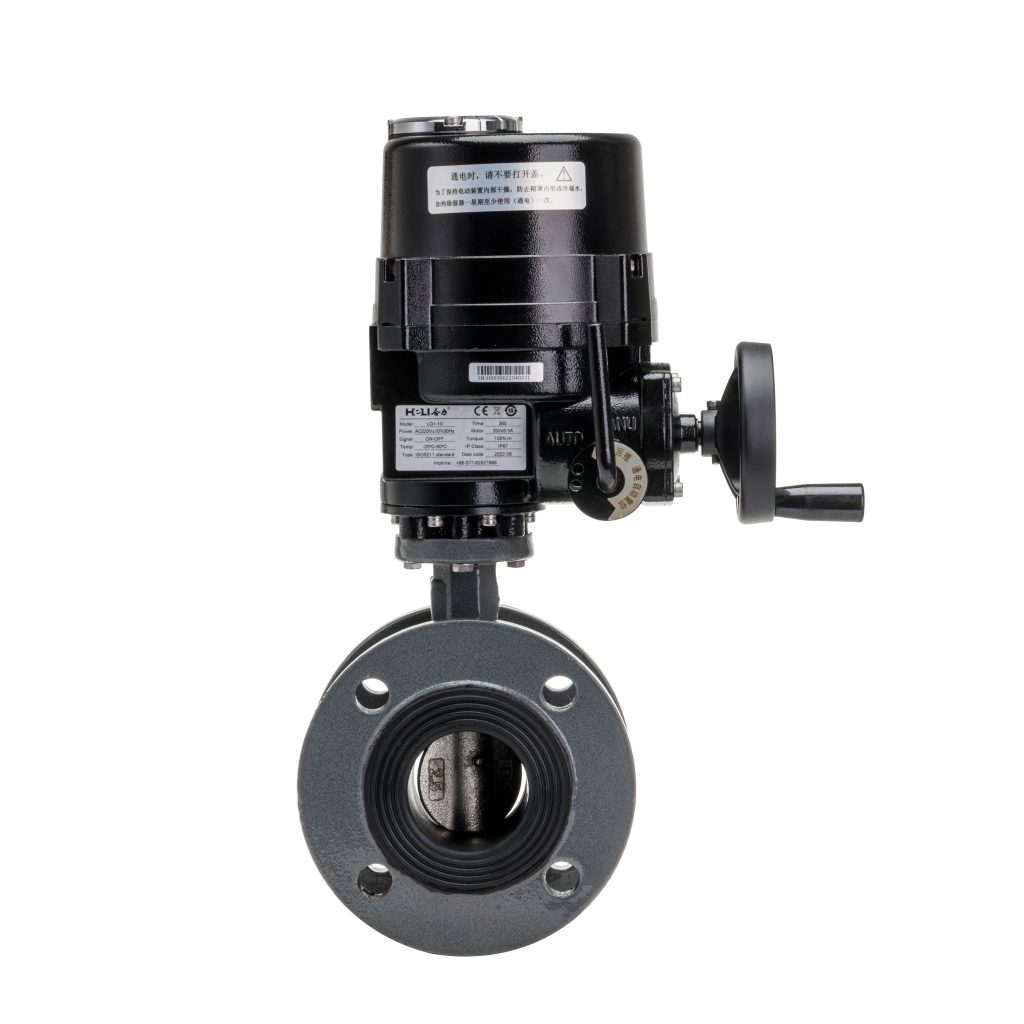

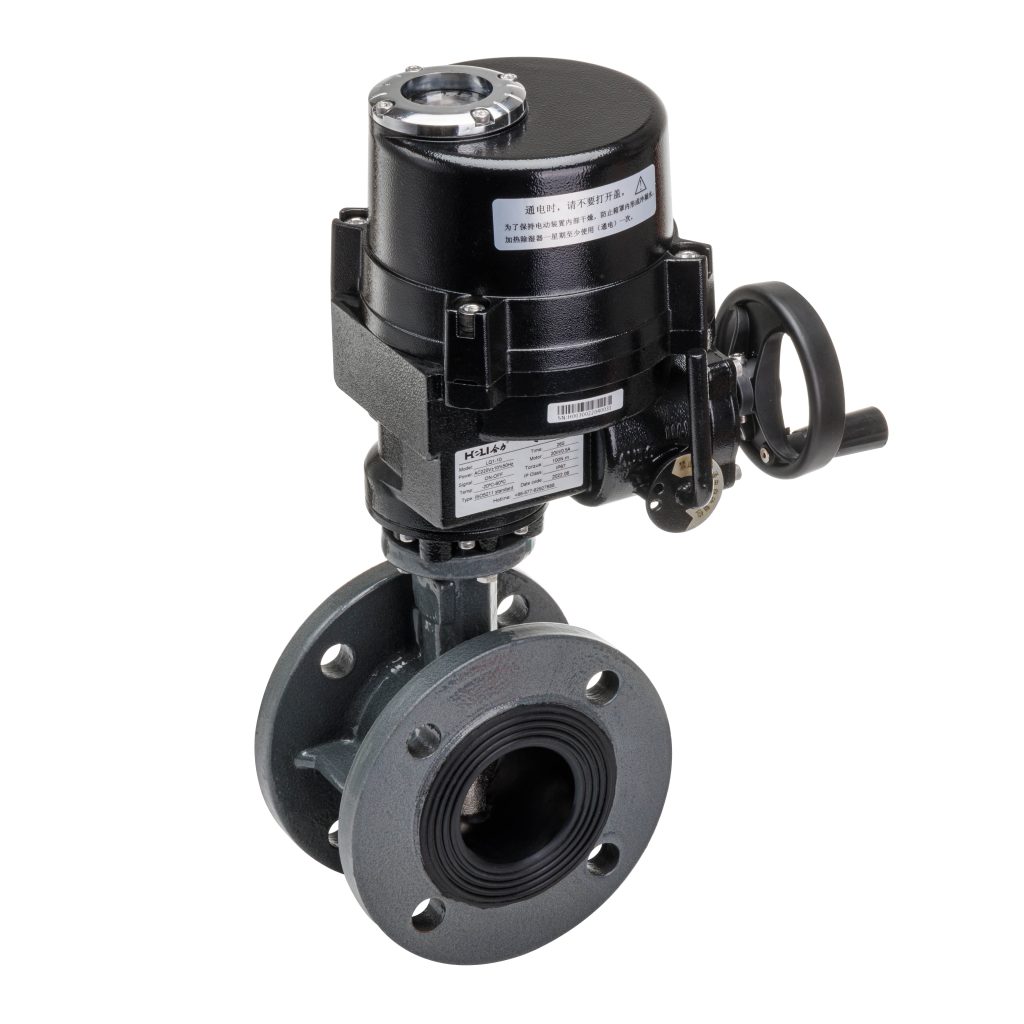

Electric ball valves are an essential component in various industrial applications, offering precise control of fluid flow through pipelines. These valves utilize an electric actuator to open and close the valve, providing a reliable and efficient means of regulating fluid flow in a wide range of systems. In this article, we will explore the fundamental aspects of electric ball valves, including their working principles, advantages, applications, and considerations for selection.
Working Principle
An electric ball valve consists of a spherical disc (the ball) with a hole through its center. When the valve is closed, the ball’s solid surface blocks the flow of fluid. To allow flow, the actuator rotates the ball by 90 degrees, aligning the hole with the pipeline. Electric ball valves typically use a servo motor or stepper motor to turn the valve, which can be controlled through a variety of signals, such as on/off switches or modulating signals for precise control. The actuator is an integral part of the valve, converting electrical energy into mechanical movement. The choice of actuator type—whether on/off or modulating—depends on the application. On/off valves provide simple open/close functionality, while modulating valves allow for varying degrees of flow control, enabling finer regulation of fluid flow.
